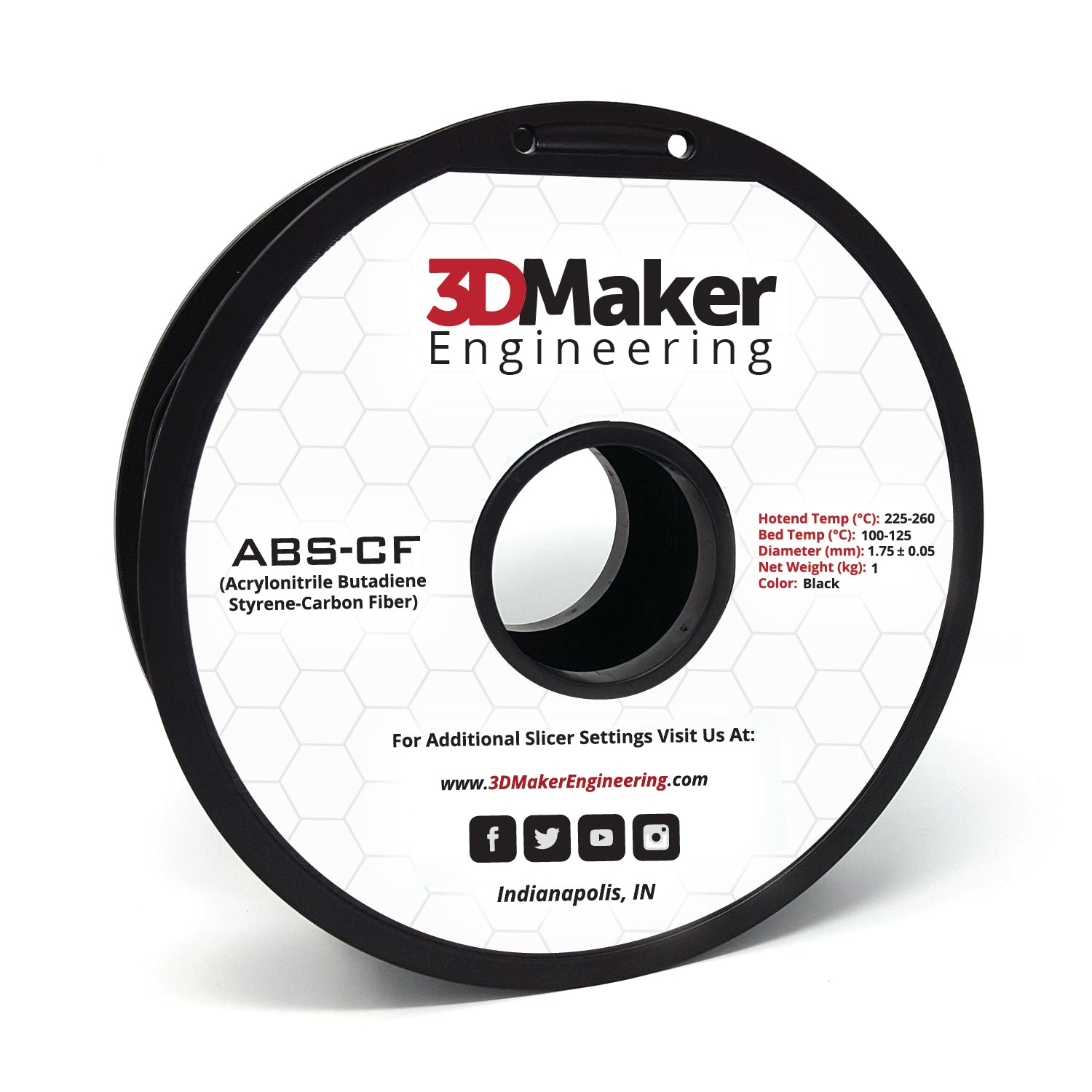

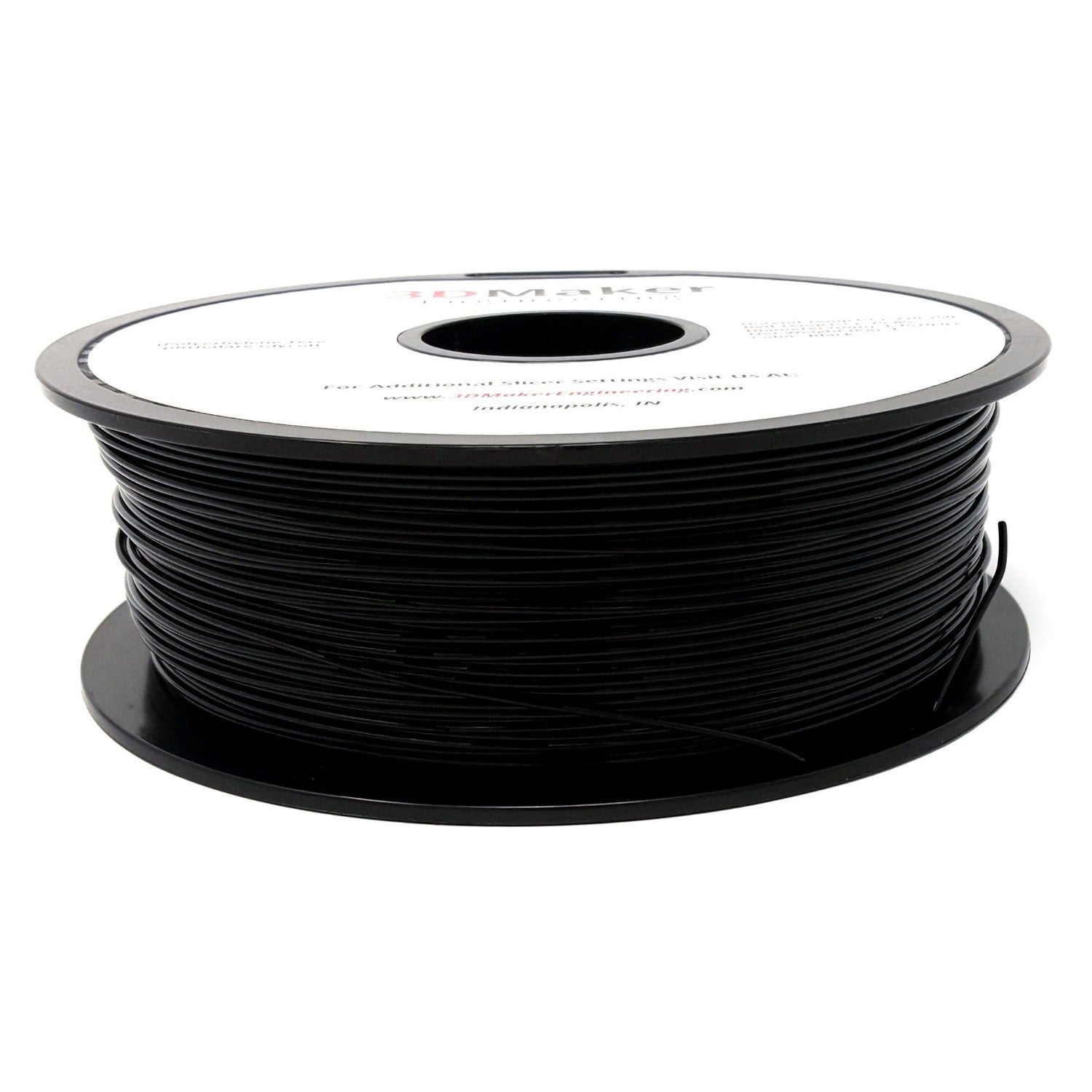

Carbon Fiber ABS Pro Series 3D Printer Filament 1.75mm

Carbon Fiber ABS Filament has the same great thermal properties as ABS with added strength and rigidity! If your design requirements are demanding you will love our proprietary CF-ABS blend!

Filament Properties:

• Hotend Temperature (°C): 210-240 (Recommended: 230)
• Bed Temperature (°C): 100-125 (Recommended: 110)
• Filament Diameter (mm): 1.75±0.05
• Net Weight: 1kg (2.2 lbs)
• Build Surface: Polypropylene or PEI

Print Parameters:

We have spent thousands of hours testing our filament with several printer types and recommend these printing settings.

• Default Print Speed: 20-60 mm/s (Recommended: 40 mm/s)
• First Layer Height: 0.28 mm*
• First Layer Speed: 15 mm/s
• Extrusion Width: 0.48 for 0.4 Nozzle (1.2X Nozzle Diameter)
• Retraction: Bowden 5mm @ 45 mm/s or Direct 2mm @ 45 mm/s
• Perimeter Print Speed: 70% of Default Print Speed
• Infill and Support Print Speed: 80% of Default Print Speed
• Fan Profile:
• Layer 1: 0%
• Layer 3: 0%
• Layer 4: 0%
• Layer 5+: 0%
• XY Jerk: 8
• Z Jerk: 0.3
• E Jerk: 5
• Acceleration (Print/Travel): 300
• Retract Acceleration: 1000
• Travel Speed (non-print moves): 120 mm/s

*Special Notes:

Our Carbon Fiber ABS is packed with carbon fiber so we do not recommend printing with a nozzle size less than 0.4mm to prevent clogging (0.6mm or bigger is ideal)
